Parameter
| NO. | Type | Outside diameter(mm) | Working pressure(Bar) | Testing pressure(Bar) | Water capacity(L) | Design wall thickness(mm) | Material | Height(mm) | Weight(KG) | Standard |
| 1 | YS-X-60-250-H-01 (0.29～0.9)L | 60 | 166.7 | 250 | 0.29 | 3.27 | 6061 | 184.6 | ～0.4 | ISO 7866(DOT-3AL GB/T11640) |
| 2 | 0.6 | 332 | ～0.7 | |||||||
| 3 | 0.9 | 493 | ～1 | |||||||
| 4 | YS-X-70-250-H-01 (0.45～1.25)L | 70 | 0.45 | 3.80 | 211.5 | ～0.6 | ||||
| 5 | 0.8 | 332 | ～0.9 | |||||||
| 6 | 1.25 | 498 | ～1.3 | |||||||
| 7 | YS-X-80-250-H-01 (0.6～1.5)L | 80 | 0.6 | 4.36 | 240 | ～0.9 | ||||
| 8 | 0.9 | 320 | ～1.2 | |||||||
| 9 | 1.5 | 480 | ～1.7 | |||||||
| 10 | YS-X-89-250-H-01 (0.9～2.3)L | 89 | 0.9 | 4.85 | 268 | ～1.2 | ||||
| 11 | 1.5 | 373 | ～1.6 | |||||||
| 12 | 2.3 | 559 | ～2.3 | |||||||
| 13 | YS-X-111-250-H-01 (1.9～4.6)L | 111 | 1.9 | 6.05 | 335.5 | ～2.3 | ||||
| 14 | 2.97 | 473 | ～3.1 | |||||||
| 15 | 4.6 | 695 | ～4.4 | |||||||
| 16 | YS-X-133-250-H-01 (3.5～8)L | 133 | 3.5 | 7.25 | 400 | ～3.9 | ||||
| 17 | 5 | 550 | ～5.1 | |||||||
| 18 | 8 | 825 | ～7.4 | |||||||
| 19 | YS-X-140-250-H-01 (4.0～9.6)L | 140 | 4 | 7.60 | 420 | ～4.5 | ||||
| 20 | 6 | 595 | ～6.1 | |||||||
| 21 | 9.6 | 890 | ～8.7 | |||||||
| 22 | YS-X-152-250-H-01 (5.18～11.84)L | 152 | 5.18 | 8.29 | 461 | ～5.9 | ||||
| 23 | 7.4 | 621 | ～7.6 | |||||||
| 24 | 11.84 | 925 | ～10.9 | |||||||
| 25 | YS-X-159-250-H-01 (5.9～12.8)L | 159 | 5.9 | 8.70 | 480 | ～6.8 | ||||
| 26 | 8 | 620 | ～8.5 | |||||||
| 27 | 12.8 | 930 | ～12.1 | |||||||
| 28 | YS-X-203-250-H-01 (12.7～21.5)L | 203 | 12.7 | 11.10 | 609 | ～13.9 | ||||
| 29 | 13.4 | 636 | ～14.4 | |||||||
| 30 | 21.5 | 954 | ～20.4 |

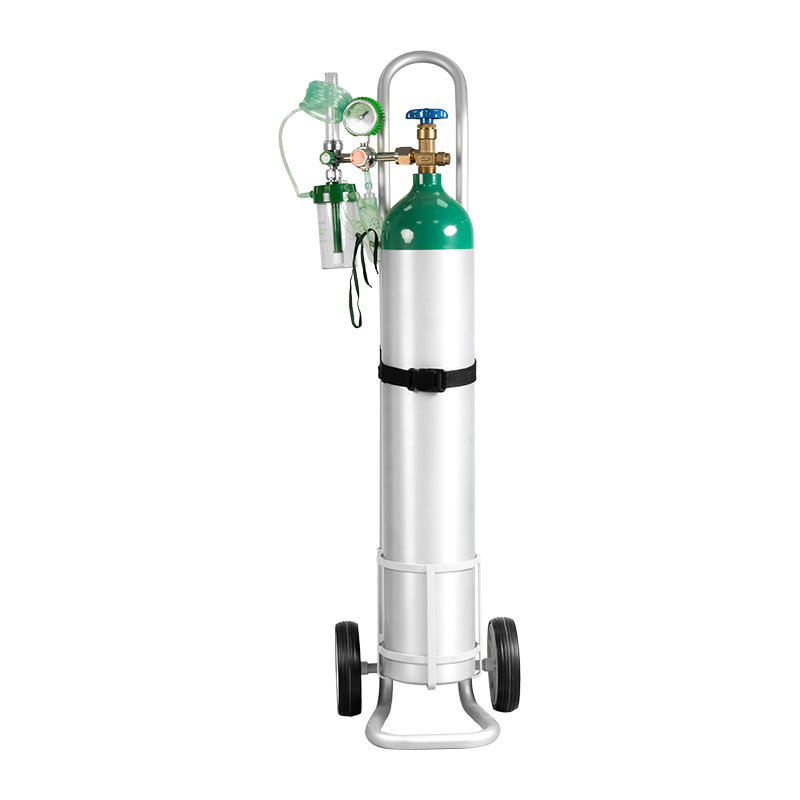

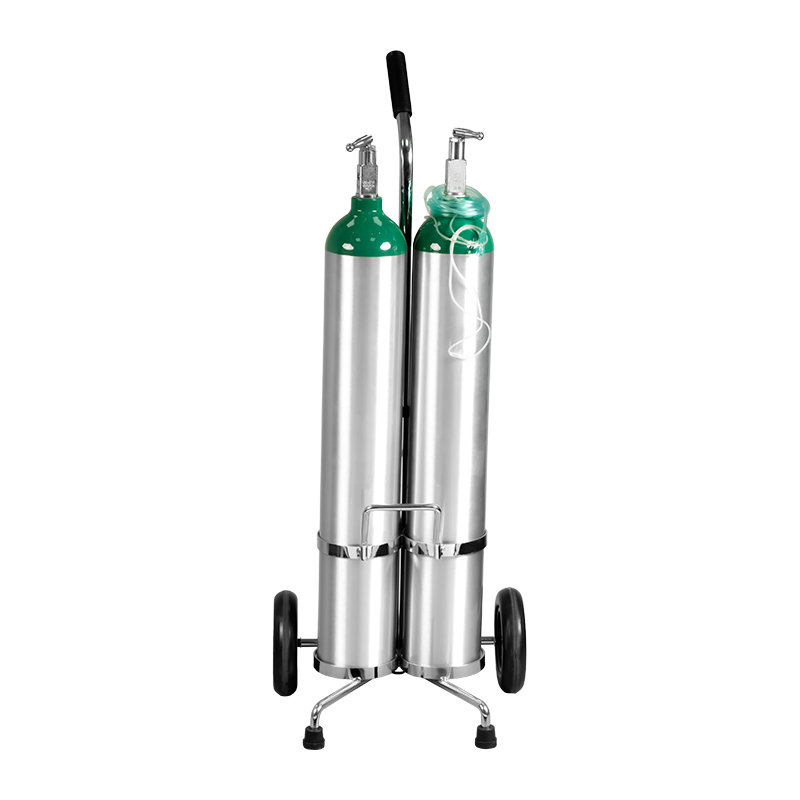

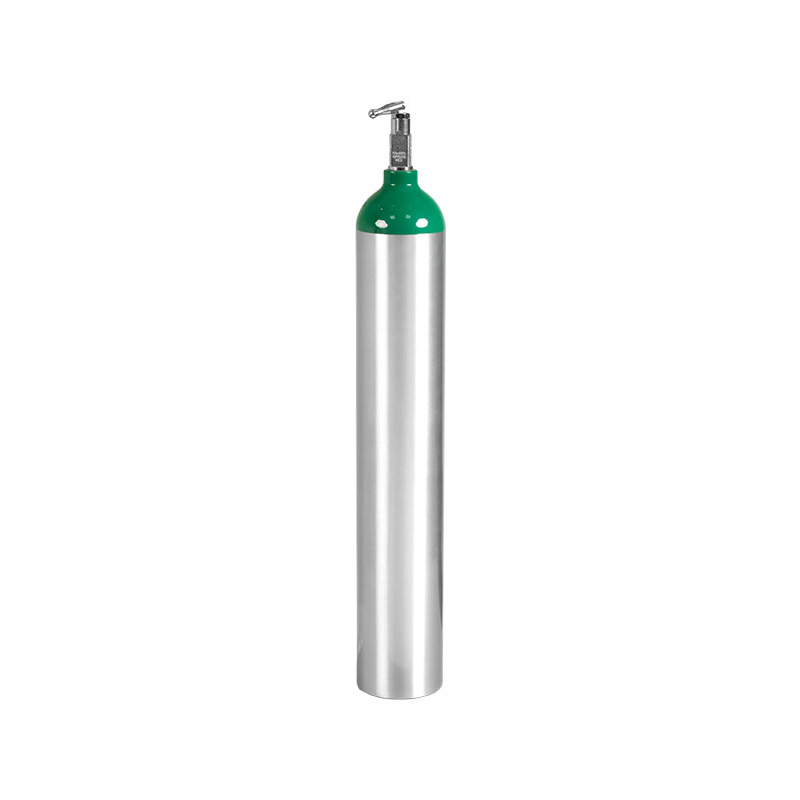

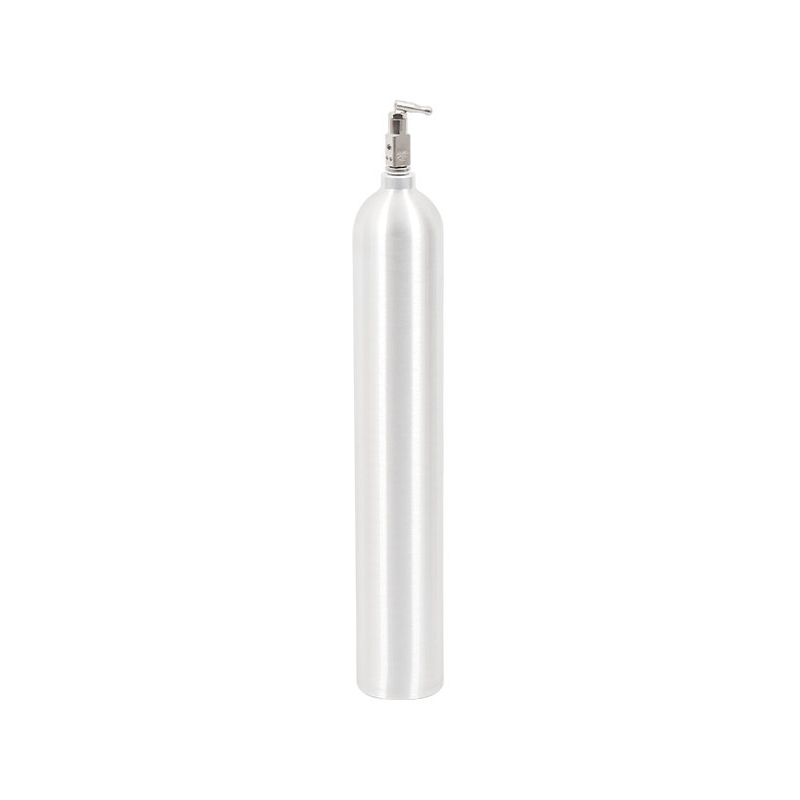

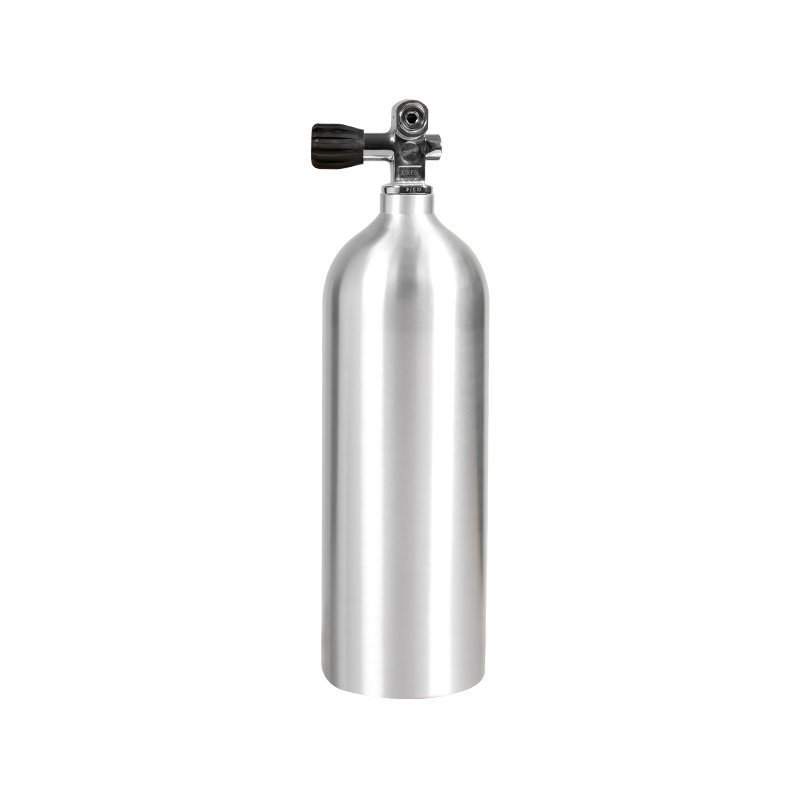

Aluminum cylinders refer to containers made of aluminum alloy materials for storing and transporting gases. Since the density of aluminum is less than steel, gas cylinders of the same volume made of aluminum will be lighter and easier to carry and transport. Aluminum alloys are naturally formed The oxide film can effectively prevent the chemical reaction between the internally stored gas and the external environment (especially the humid environment), improving the safety of the stored gas and the service life of the gas cylinder. Due to the characteristics of the aluminum material, aluminum cylinders do not require coating Or very simple protection measures can be used for a long time. Aluminum cylinders are used in a wide range of applications, including medical oxygen cylinders, diving cylinders, firefighters' breathing apparatus, gas transportation and storage for various industrial uses, and in the automotive industry as compressed natural gas (CNG) and Hydrogen fuel storage facility.
